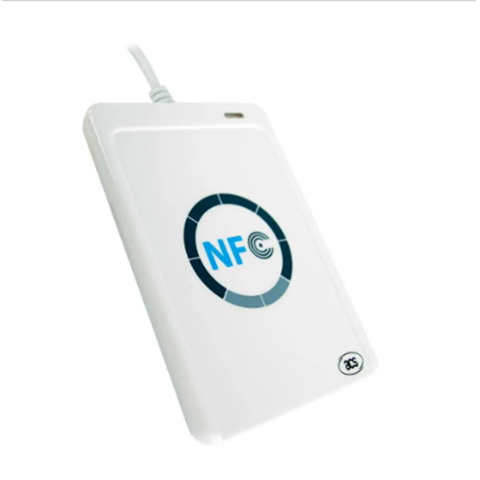

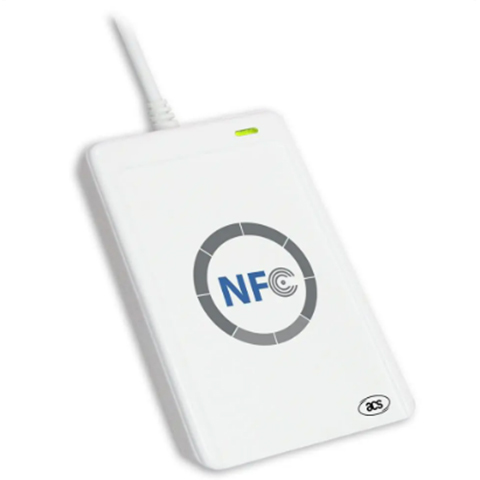

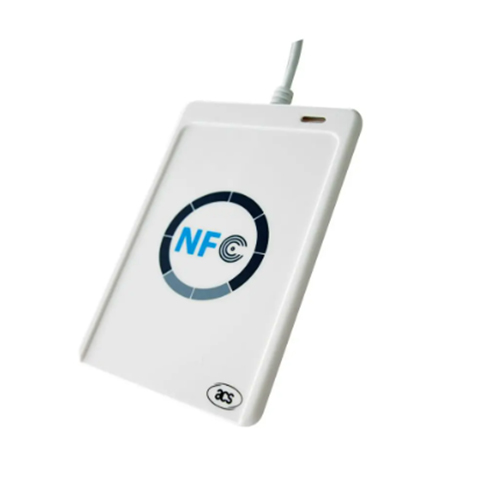

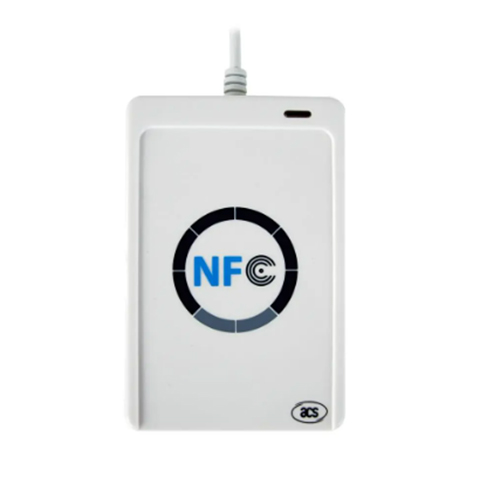

ACR122U-A9 NFC Reader writer-NFC Reader Writer-

SHORT DESCRIPTION:

ACR122U-A9 NFC Reader writer

The ACR122U NFC Reader is a PC-linked contactless simart card reader/writer

developed based on 13.56 MHz Contactless (RFID) TechnologyCompliant with

the ISO/IEC18092 standard for Near Field Communication (NFC), it supports

not only MIFARE® and ISO 14443 A and B cards, but also all fopur types of NFC

tags.

ACR122U-A9 NFC Reader writer

USB 2.0 Full Speed Interface

CCID Compliance

Smart Card Reader:

Read/write speed up to 424 kbps

Built-in antenna for contactless tag access, with card reading distanceof up to 50 mm (depending on tag type)

Supports ISO 14443 Type A and B cards, MIFARE, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags

Built-in anti-collision feature (only 1 tag is accessed at any time(9)

Application Programming Interface:

Supports PC/SC

Supports CT-API (through wrapper on top of PC/SC)

Peripherals:

User-controllable bi-color LED

User-controllable buzzer

Supports AndroidTM OS 3.1 and above
