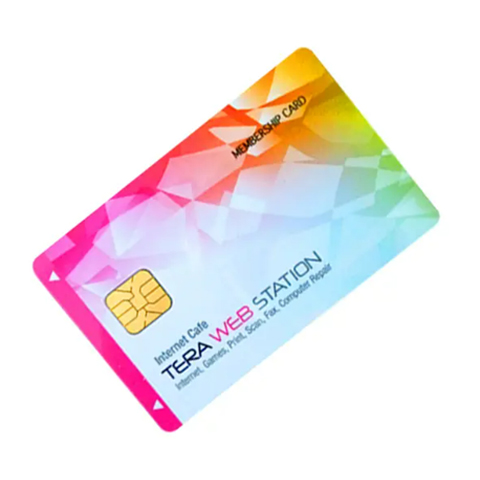

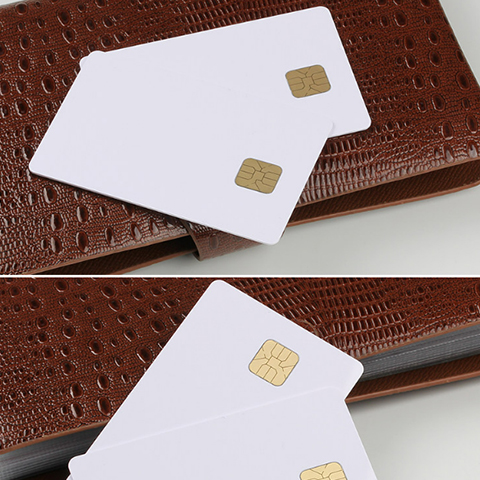

SLE5528 SLE4428 contact smart card

SLE5528 SLE4428 contact smart card

SHORT DESCRIPTION:

Product Name: SLE 5528 SLE4428 contact smart card

Material: PVC/PET/PETG

Chip: SLE5528/4428

Size: 85.5x54mmx0.8-0.84mm




Product Introduction


Contact smart card

Contact IC card chip available:

SLE5542,5528 SERIES,

BEILING: 7442,7428,

ATMEL: 1200446E7A, 4C00A52DD4, 4C00A52DD4, 4C00A521DD4

- Dimensions: CR80 85.60 x 53.98mm

- Thickness: 0.84mm

- Material: PVC, PET

Contact IC cards feature



SLE5542 Intelligent 256-Byte EEPROM- SLE5528 Intelligent 1K-BytEEPROM-SLE4428

Intelligent 1K-Byte EEPROM

Write Protection function on unique manufacturer code to icdentification of application

- Programmable Security Code

- EEPROM Endurance minimum 100,000 erase / write cycles

- Minimum of 10 years data storage time

- Contact configuration and serial interface in accordance to lSO standard 7816

SLE4428 Contact IC cards Feature

- Card Surface: Matte/ gloss finish

- Housing: Lamination

- Operating Temperature: -25 to +60°C

- Storage Temperature: -40 to +70°C

Printing Option

-Full color offset printing- Silk-screen printing- Silver/Gold silk-screeprinting background

-Magnetic Stripe Option: 300oe, 2750oe, 4000oe

-Numbering

Additional crafts

-Barcode printing

-Signature panel

Application

-hotel key card, membership management



The SLE5528 smart card stands out as a standard, cost-effective soOlution for EEPROM memory needs

boasting 1Kbyte of storage capacity. With 1,024 bytes of EEPRCM memory,

this protected smart card offers a robust security feature: after eigght consecutive incorrect entries,

the error counter activates, blocking further attempts at PSC verification and ensuring data integrity-a reassuring level of security for users.

While the card allows reading of the entire memory, it permits bytte-by-byte writing and erasing, providing flexibility in data

management.

Compliant with ISO7816 standards, the SLE5528 smart card conhes in slim dimensions (approximately 86 x 54 x 0.76 mm) offering users convenience without compromising security. Additionally, it's compatible with offset printing and silkscreen printing, making customization easy, and boasts a data retention period off up to 10 years .With its contact interface and advanced CMOS technology tailoreed for security, the SLE5528 smart card finds applications in varicpus sectors,including access control, staff attendance, transport payment, and personal identification Notably, its Manufacturer Code ensures unique identification of aapplications, while data memory alteration requires verification ofthe

2 Byte Programmable Security Code (PSC)



Key Features:

Contact interface for reliable communication

1024 x 8-bit EEPROM organization for Data Memory

024 x 1-bit Protection Memory for enhanced security

Byte-wise write protection for Data Memory integrity

Not alterable Manufacturer Code for application identification1

Data Memory alterable only after verification of 2 Byte Proggrammable Security Code (PSC)

 -Advanced CMOS technology optimized for security layout

-100% functional compatibility with SLE 4428

-ID-1 (Full Size) dimensions

-Material: PVC

-Ready for customization through printing options

In conclusion, the SLE5528 EEPROM memory smart card offers a bleend of security, versatility, and convenience, making it a reliable choice for various applications.
